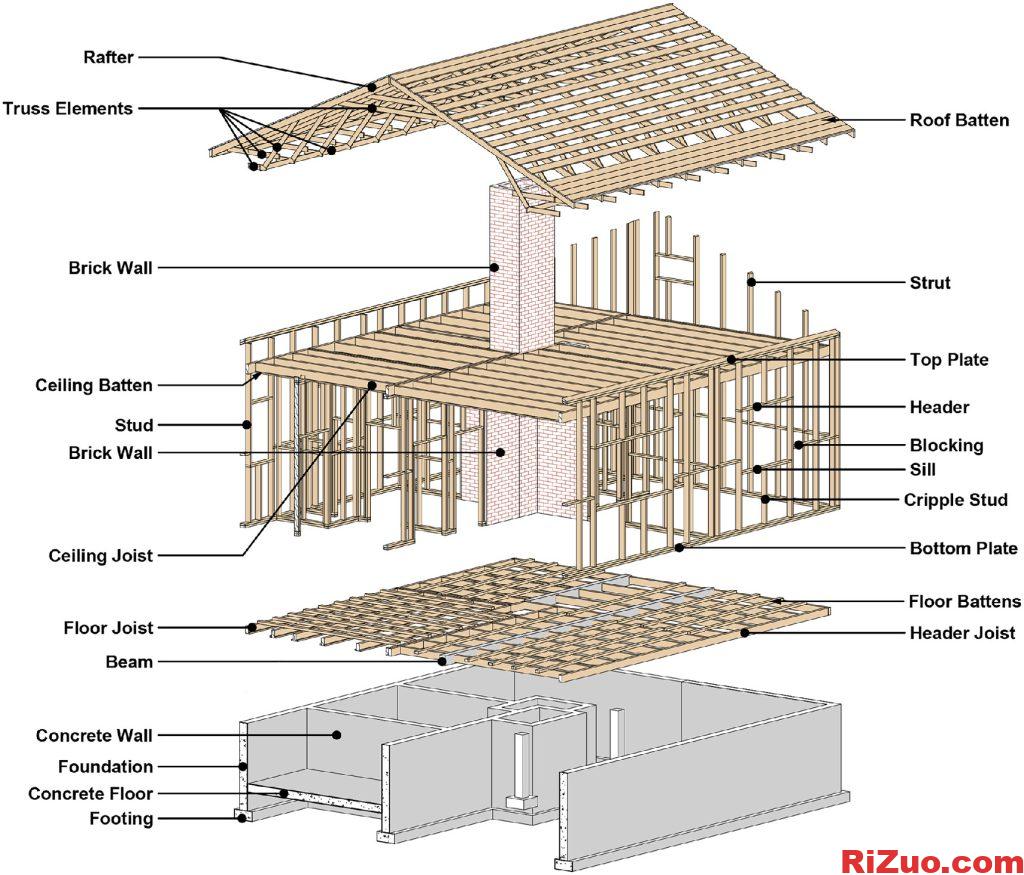

Building materials and building-elements included in MIs for balloon framing and prefabricated houses.
![图片[1]_美国湾区木结构房屋结构英文名称_日作设计](https://www.rizuo.com/wp-content/uploads/2025/09/20250920121044537-House-wooden-structure-names1-1024x875.jpg?v=1758395446)
![图片[2]_美国湾区木结构房屋结构英文名称_日作设计](https://www.rizuo.com/wp-content/uploads/2025/09/20250926201721908-xframing-carpentry-diagram6.png?v=1758943042)

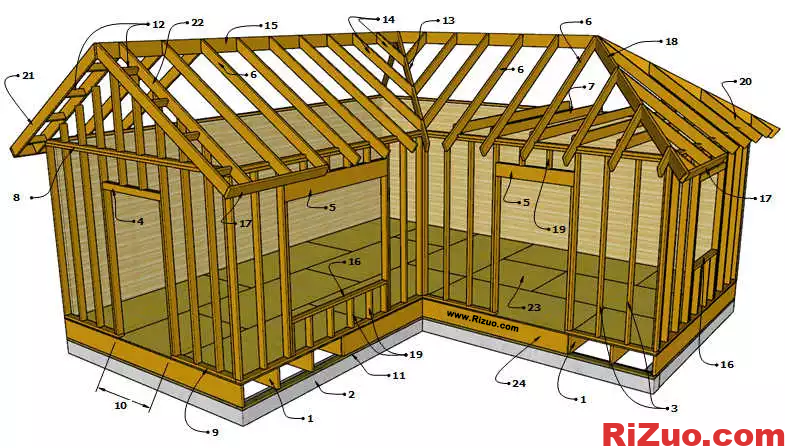

The numbered labels in the diagram above correspond to the numbers and descriptions in the table below.
| 1 | Floor Joist | 13 | Valley Rafter |
| 2 | Foundation/Footing | 14 | Valley Jack Rafters |
| 3 | Common Studs | 15 | Ridge |
| 4 | Header (Non-Load Bearing) | 16 | Rough Sill |
| 5 | Header (Load Bearing) | 17 | Sub Fascia |
| 6 | Common Rafter | 18 | Hip Rafter |
| 7 | Ceiling Joists | 19 | Cripple |
| 8 | Double Plate | 20 | Hip Jack Rafters |
| 9 | Sole Plate | 21 | Fly Rafter |
| 10 | Rough Opening | 22 | End Rafter |
| 11 | Sill | 23 | Subfloor |
| 12 | Lookouts | 24 | Joist Header |
